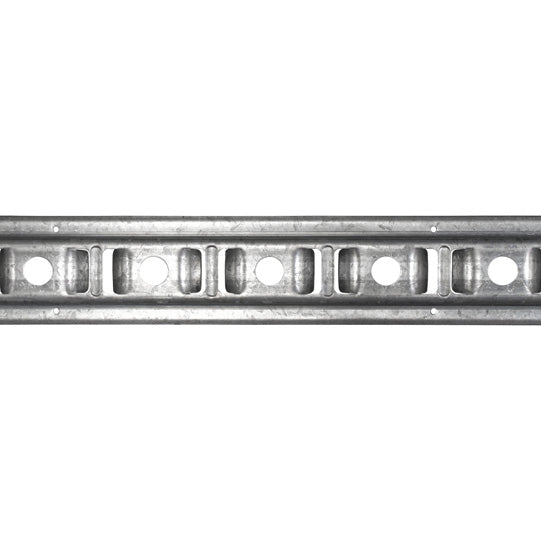

S-Line® round hole connecting rail 3100-VK, pre-galvanised, 592

S-Line® round hole connecting rail 3100-VK, pre-galvanised, 592

142138835

⚖️ 11,6 kg

Login view prices

Description

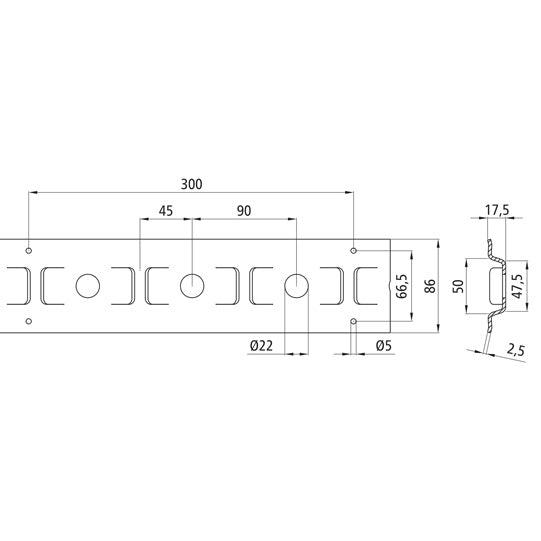

S-Line® round hole connecting rail 3100-VK, pre-galvanised steel, with adhesive edge, for horizontal wall mounting, length 5920 mm, compatible with combination spigotØ 19/24 mm and all fabric straps up to 35 mm

Attributes

Adhesive channel Yes
Countersunk holes No
Hole diameter 22.0
Installation area Horizontal wall
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 5920.0
Material Steel
Material thickness 2.5
Surface Pre-galvanized
Width 86.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
