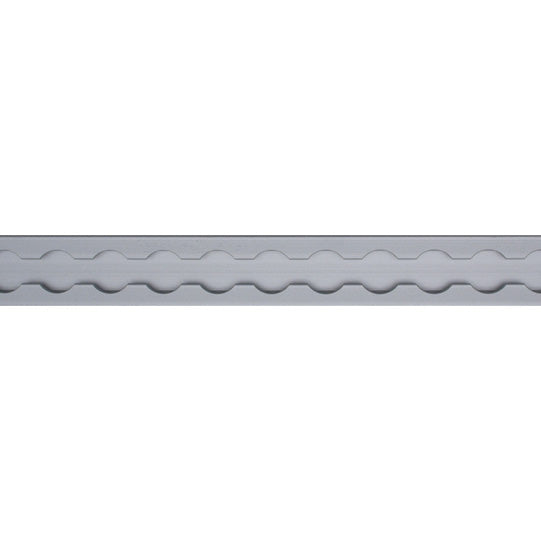

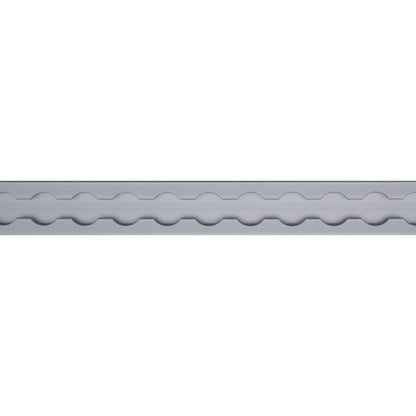

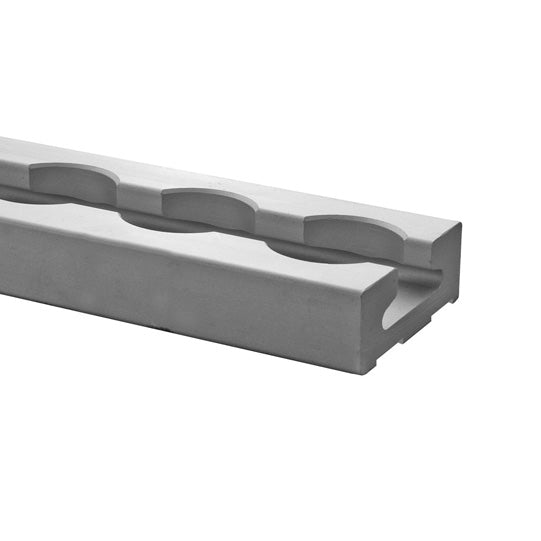

S-Line airline profile anchor rail 4002AL, 6000 mm, hole 20 mm

S-Line airline profile anchor rail 4002AL, 6000 mm, hole 20 mm

142138874

⚖️ 5,26 kg

Login view prices

Description

S-Line Airline profile anchor rail 4002AL,aluminum anodised, angular design without countersunk holes, for floor, horizontal and vertical wall mounting, length 6000 mm, compatible with combination spigot Ø 19/24 mm, all Airline end fittings and articulated shutter beams 142138510

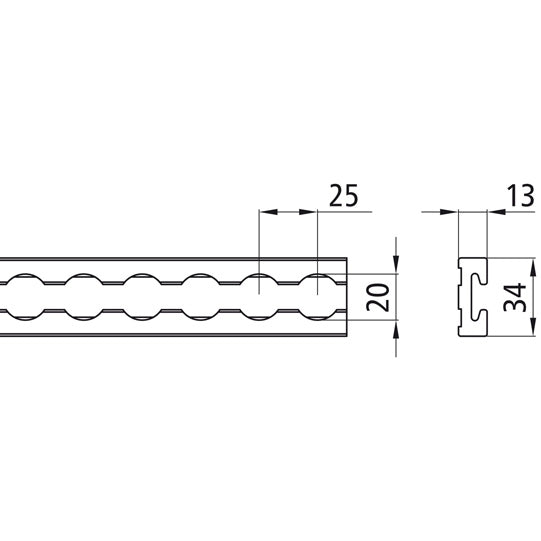

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Height 13.0
Hole diameter 20.0
Installation area Wall vertical/horizontal - Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1500.0
Length 6000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 34.0
