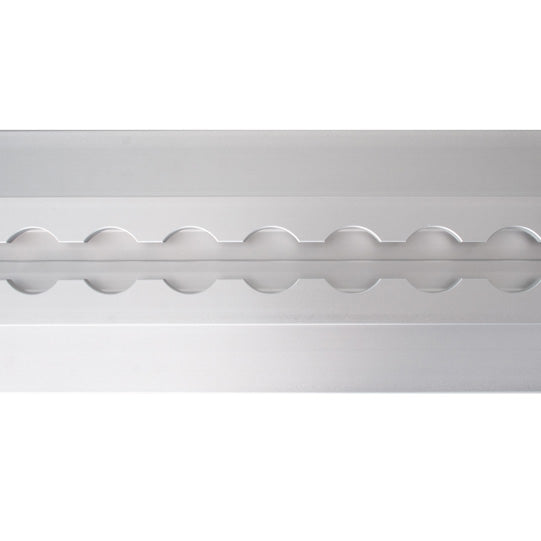

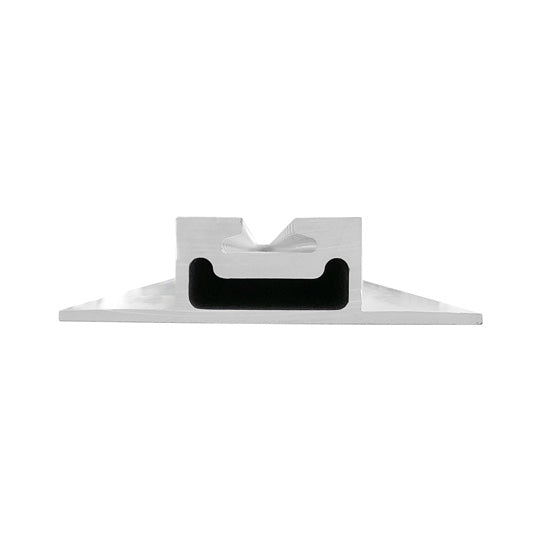

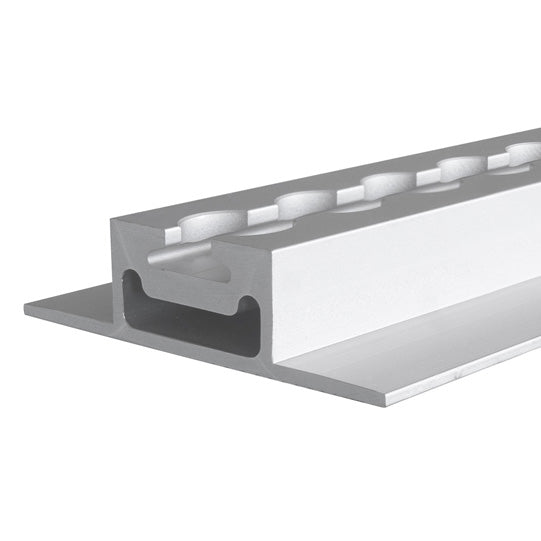

S-Line Airline profile anchor rail 4010, 3000 mm

S-Line Airline profile anchor rail 4010, 3000 mm

142139026

⚖️ 5,58 kg

Login view prices

Description

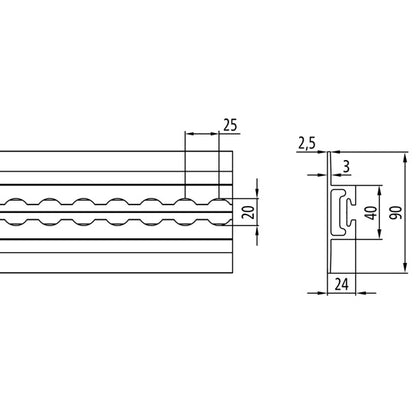

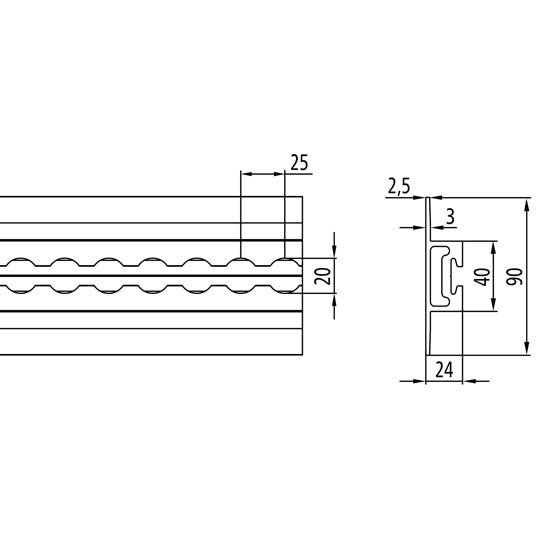

S-Line Airline profile anchor channel 4010, 3000 mm; aluminum anodised, hole Ø 20 mm, 25 mm spacing, bottom wing, 24 mm high, no countersunk hole, BLC ∡90° and ∡45°: 1000 daN with end fitting 571, for floor mounting, compatible with combination spigot Ø 19/24 mm and all Airline end fittings

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Height 24.0
Hole diameter 20.0
Installation area Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
