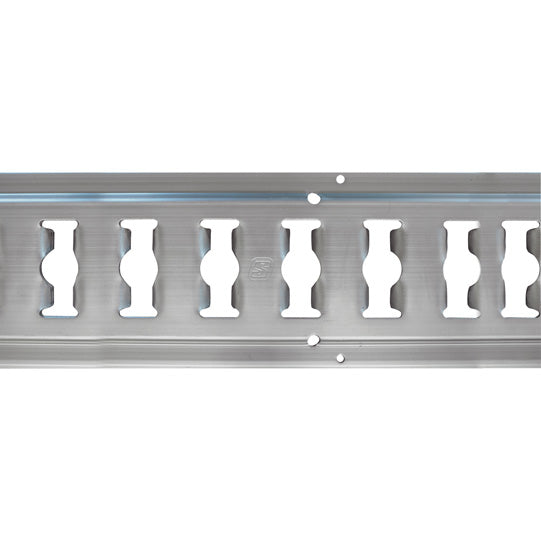

S-Line combination anchor channel 3009-VK, aluminum, 6096 mm

S-Line combination anchor channel 3009-VK, aluminum, 6096 mm

142138841

⚖️ 5,7 kg

Login view prices

Description

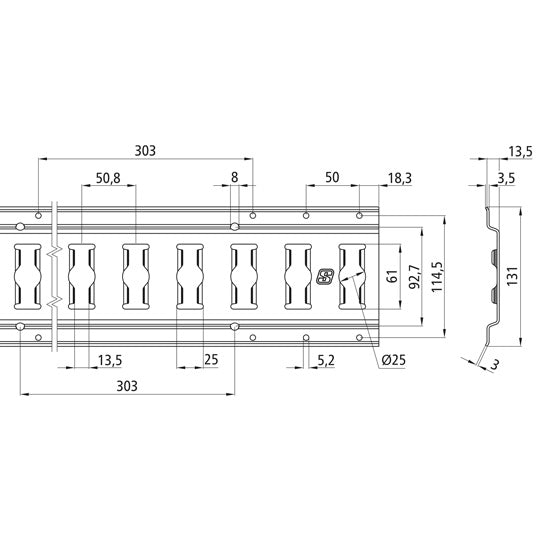

S-Line® combination anchor channel 3009-VK, aluminum, with adhesive edge, for horizontal wall mounting, length 6096 mm, compatible with combination spigotØ 19/24 mm and combination anchor channel end fittings

Attributes

Adhesive channel Yes
Countersunk holes No
Hole diameter 25.0
Installation area Horizontal wall
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 6096.0
Material Aluminum
Material thickness 2.0
Surface Blank
Width 131.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
