Slotted-hole anchor channel 3008, galvanised stl., 3000 mm

Slotted-hole anchor channel 3008, galvanised stl., 3000 mm

142138021

⚖️ 6,74 kg

Login view prices

Description

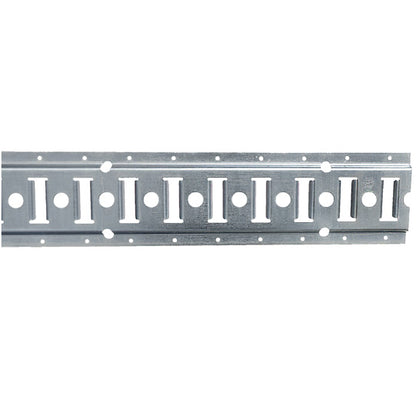

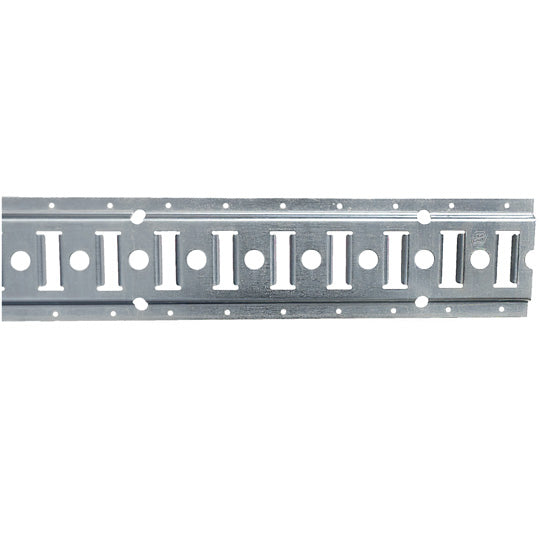

S-Line® slot-and-hole anchor channel 3008, galvanised steel, for horizontal wall mounting, length 3000 mm, compatible with combination spigotØ 19/24 mm and combination anchor channel end fittings for lashing straps

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Hole diameter 20.0
Installation area Horizontal wall
Lashing rail profile 1
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3000.0
Material Steel
Material thickness 2.5
Profile with airline system 0
Side wall lifting aid 0
Surface Galvanized
Width 128.0
