SSP3 Floor frame straight, drop 27 mm, 7200 mm

SSP3 Floor frame straight, drop 27 mm, 7200 mm

605646701

⚖️ 55,956 kg

Login view prices

Description

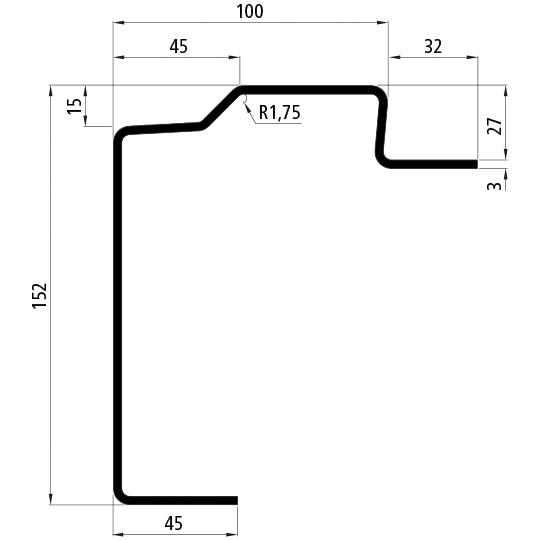

SSP3 floor frame profile, straight, S420GD, cold-profiled, zinc-aluminum-magnesium alloy, length 7200 mm, 152 x 27 x 3 mm, with hole pattern for lashing bracket 295132021 and for mounting dropside hinges

Notes

The connecting dimensions of the SSP3 profile are suitable for the Cargotrail SSP3 steel platform. Further information on request.
The floor frame profile is prepared for lashing brackets 295132021, with corresponding mounting holes at 75 mm intervals. The inserted lashing bracket does not protrude above the floor frame profile. No accumulation of water and dirt in the lashing bracket area, therefore no freezing of the lashing brackets under ice. Splash water protection for open lashing bracket mounting holes using a plug 215131825 (Ø 16 mm).

Attributes

Grade S420GD
Length 7200.0
Material Steel
Material thickness 3.0
Profile height 152.0
Profile type Floor frame profile for lashing bracket
Profile width 45.0
Stop depth 27
Surface Galvanized
