Stanchion lock H12/90 f. U-profile 40 x 100 x 40 x 5 mm

Stanchion lock H12/90 f. U-profile 40 x 100 x 40 x 5 mm

102102396

⚖️ 5,65 kg

Login view prices

Description

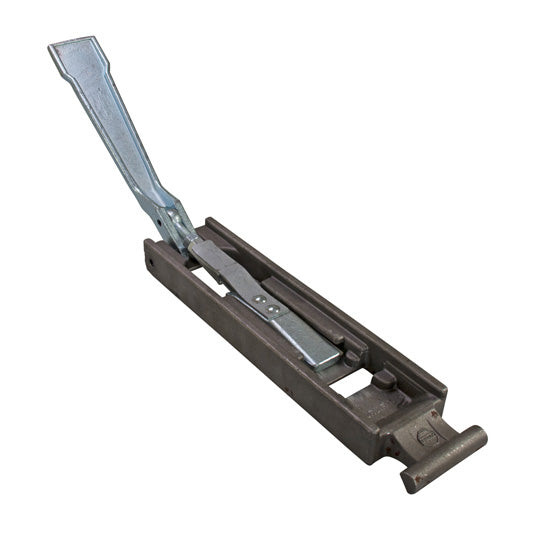

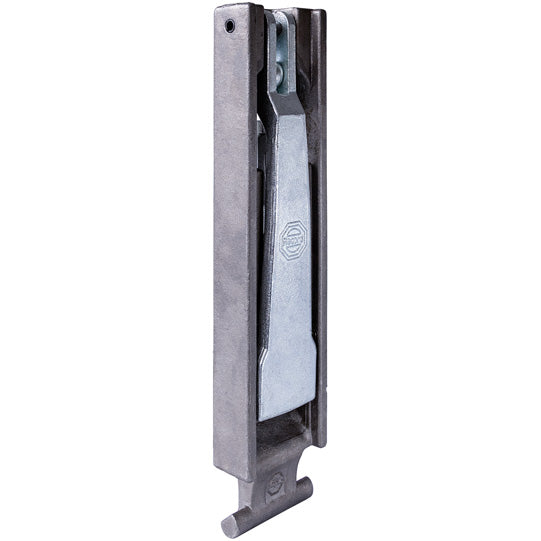

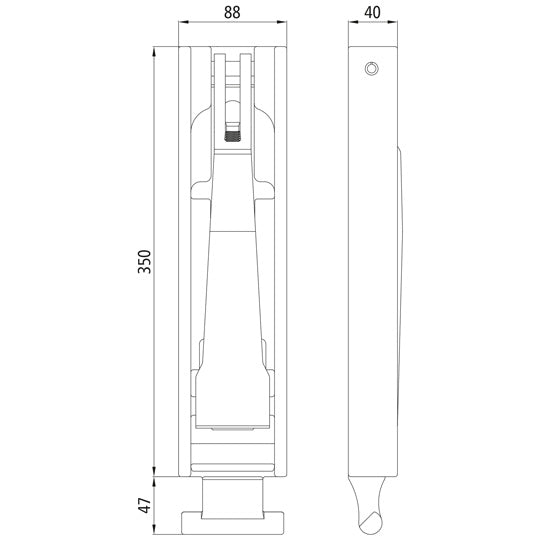

Stanchion lock H12/90 for U-profile 40 x 100 x 40 x5 mm, width 88 mm, raw steel, galvanised inner parts

Notes

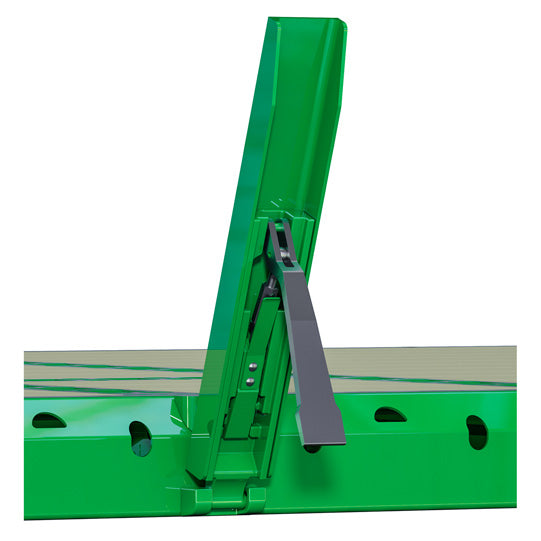

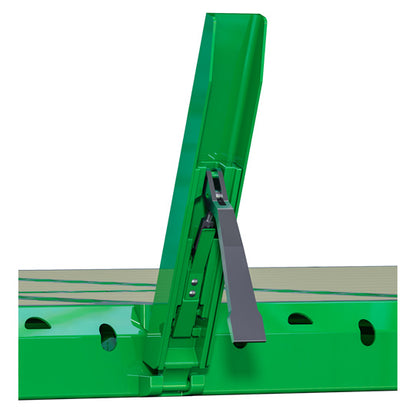

Heavy-duty stanchion lock for fold-down and removable stanchions on tipper bodies and for long material transporters. The locking eyelet is bolted to the outer frame. The stanchion is locked by the locking eye reaching through a window on the rear of the stanchion profile and being blocked there by the locking wedge. Please order all parts separately.

Attributes

Closure type Tension lock
Flat eyelet profile 0
Lashing rail profile 0
Length 397.0
Material Steel
Profile with airline system 0
Side wall lifting aid 0
Surface Raw
Width 88.0
