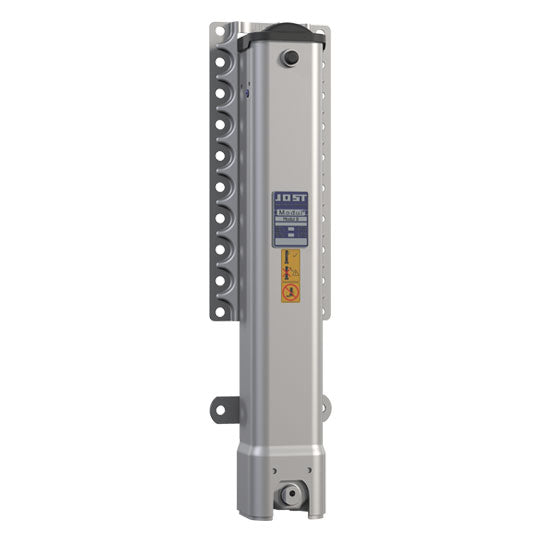

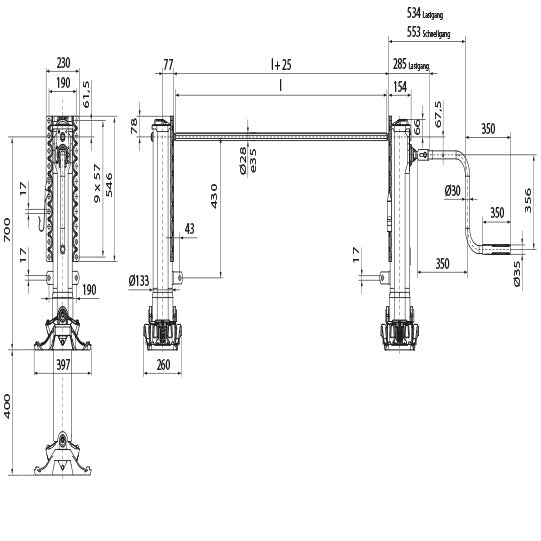

Supporting jack module B, L, MH 700 mm, stroke 400 mm

Supporting jack module B, L, MH 700 mm, stroke 400 mm

178481119

⚖️ 34,6 kg

Login view prices

Description

Support winch module B, left side, mounting height 700 mm, stroke 400 mm, double plate, lifting load 24 t, stat. Test load 50 t, crank pressure per crank at 16 t lifting load 210 Nm, stroke per crank revolution 0.9 mm (load gear) /15 mm (fast gear)
