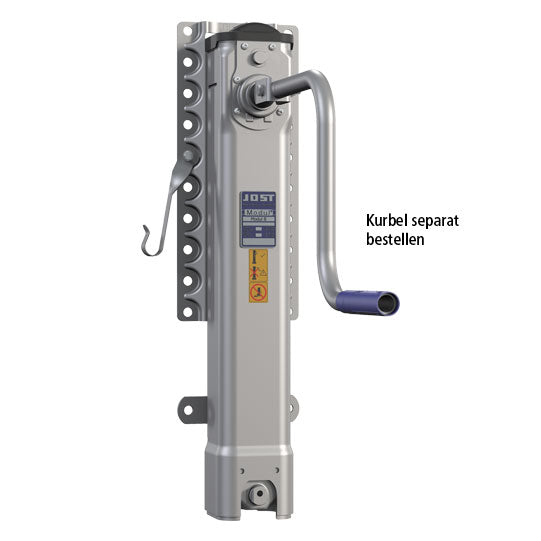

Supporting jack module B, L, MH 800 mm, stroke 470 mm

Supporting jack module B, L, MH 800 mm, stroke 470 mm

178481118

⚖️ 38,4 kg

Login view prices

Description

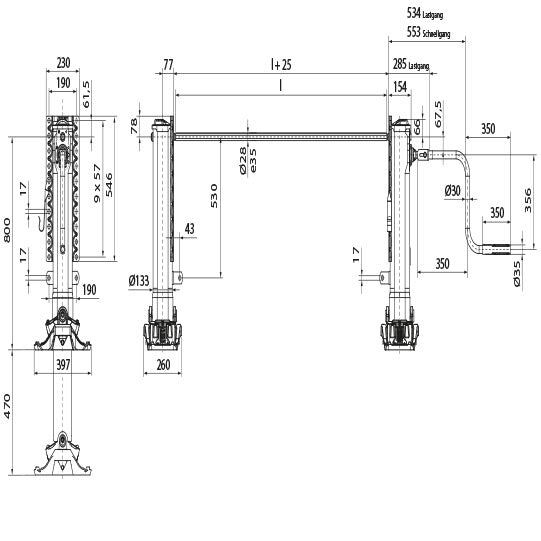

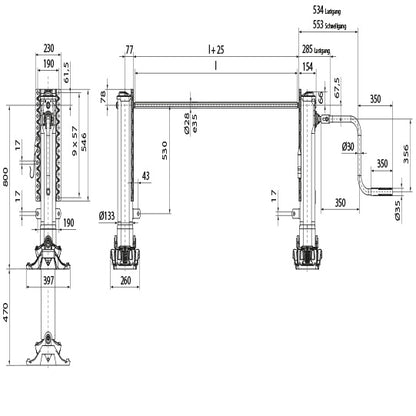

Support winch module B, left side, mounting height 800 mm, stroke 470 mm, double plate, lifting load 24 t, stat. Test load 50 t, crank pressure per crank at 16 t lifting load 210 Nm, stroke per crank revolution 0.9 mm (load gear) /15 mm (fast gear)

Attributes

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
