Supporting jack module B, R, MH 900 mm, stroke 560 mm

Supporting jack module B, R, MH 900 mm, stroke 560 mm

178481109

⚖️ 43,9 kg

Login view prices

Description

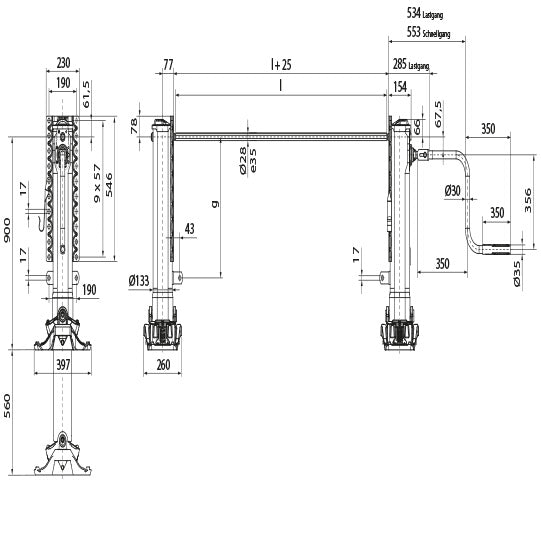

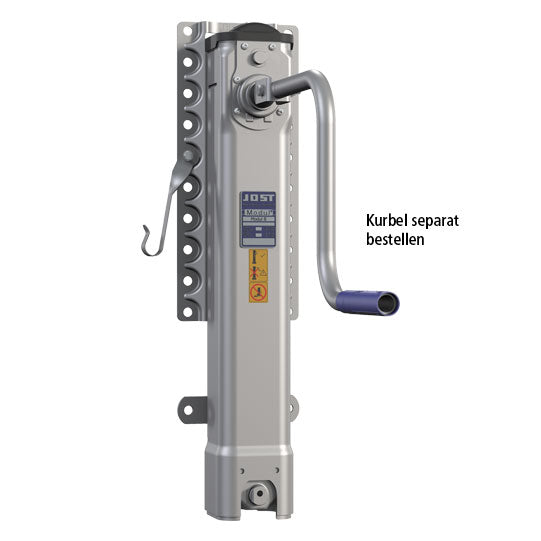

Support winch module B, right-hand side, mounting height 900 mm, stroke 560 mm, double plate, lifting load 24 t, stat. Test load 50 t, crank pressure per crank at 16 t lifting load 210 Nm, stroke per crank revolution 0.9 mm (load gear) /15 mm (fast gear)

Attributes

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
