Tension spring 254 A / GR 87, 8x50x250x310 mm

Tension spring 254 A / GR 87, 8x50x250x310 mm

405131243

⚖️ 1,7 kg

Login view prices

Description

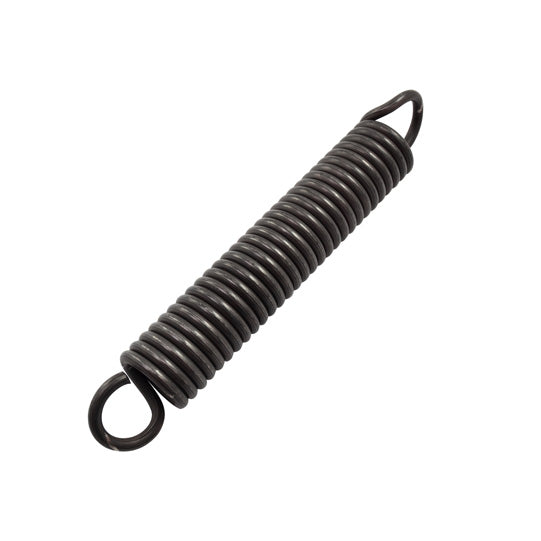

Tension spring 254 AGr. 87, 8 x 50 x 250 x 310 mm, both ends with open or closed eyelets, spring steel wire to DIN EN 10270-1-SH, tolerances to DIN 2097, grade 2, German eyelet on both sides, dimensions: wire Ø 8 mm, outer spring Ø 50 mm, length without eyelets 250 mm, length from eyelet to eyelet 310 mm

Attributes

Diameter 50
Length 310.0
Material Spring steel
Material thickness 8.0
