Tension spring 254 A / GR 91, 10x50x300x365 mm

Tension spring 254 A / GR 91, 10x50x300x365 mm

405131246

⚖️ 2,4 kg

Login view prices

Description

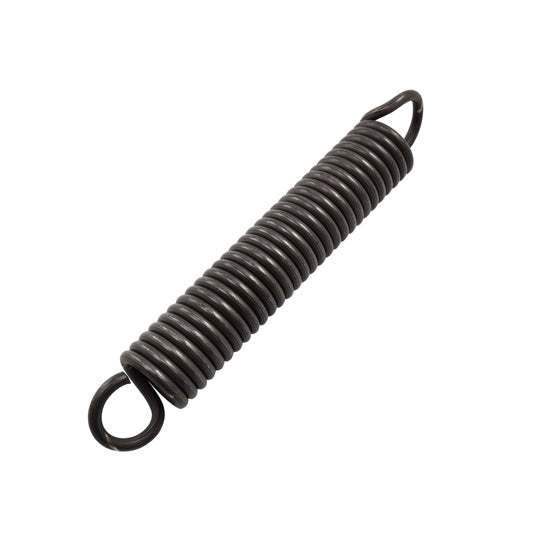

Tension spring 254 AGr. 91, 10 x 50 x 300 x 365 mm, spring steel wire to DIN/EN 10270-1-SH, tolerances to DIN 2097, grade 2, German eyelet on both sides, dimensions: wire Ø 10 mm, outer spring Ø 50 mm, coil length 300 mm, untensioned spring length 365 mm

Attributes

Diameter 50
Length 365.0
Material Spring steel
Material thickness 10.0
