Tilt bearing 1001, L, raw, ball head Ø 45 mm, w/ Durethansch.

Tilt bearing 1001, L, raw, ball head Ø 45 mm, w/ Durethansch.

109141335

⚖️ 0,71 kg

Login view prices

Description

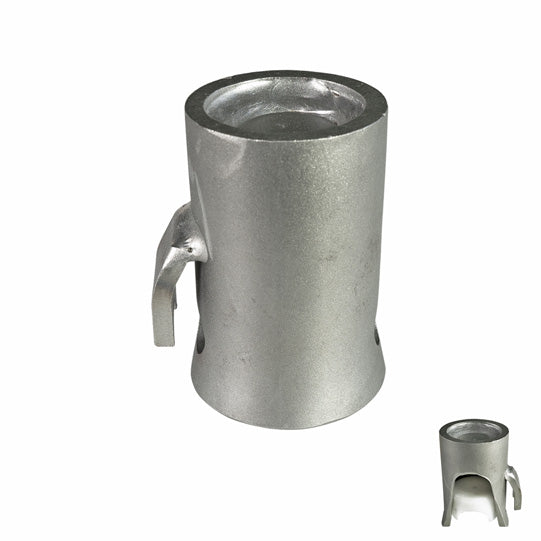

Tilt bearing 1001, left, untreated steel, drill holes for socket pin 16/16, for Ø 45 mm ball, with Durethan shell, tilt angle up to max. 50°

Notes

The 1001 ball tipper bearing is a cost-effective solution for agricultural vehicles and light tippers in particular. The simple and quick installation makes it particularly economical, rational in design, as the tipper beam shaft is not required, and maintenance-free thanks to the replaceable Durethan shell. The ball tilting bearing 1000 (Ø 45 mm) is designed for vehicles up to 8 t GM. Tilting angle up to a maximum of 50°.

Attributes

Material Steel
Perm punkt total vehicle weight 8.0
Surface Raw
