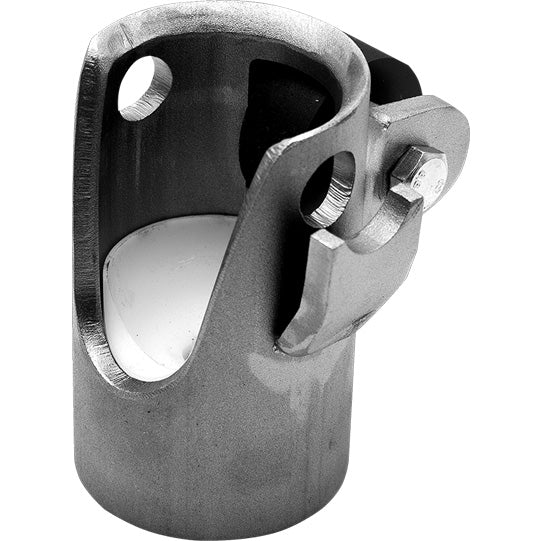

Tilting bearing 3001 Ball Ø 80 mm, pin bore 25/22 mm

Tilting bearing 3001 Ball Ø 80 mm, pin bore 25/22 mm

109141268

⚖️ 3,7 kg

Login view prices

Description

Tilting bearing 3001, for ball Ø 80 mm, raw steel, pin bore 25/22 mm, with noise damping, with Durethan shell, tilting angle up to max. 50°

Notes

The ball tilting bearing 3001 has built-in noise damping, which is achieved by a robust Vulkollan roller. This roller can be adjusted eccentrically and the tilting bearing is maintenance-free thanks to a screwed-in Durethan shell, which guarantees a long service life.
The ball tipper bearing can be used for all tipper bodies on trucks, trailers and semi-trailers. The ball tilting bearing 3001 (Ø 80 mm) is designed for vehicles up to 24 t GM and tilting angles up to a maximum of 50°.

Attributes

Perm punkt total vehicle weight 24.0
Surface Raw

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
