Tipper floor frame profile, untreated, 6300 mm, 110 x 30 x 4 mm

Tipper floor frame profile, untreated, 6300 mm, 110 x 30 x 4 mm

372561382

⚖️ 52,23 kg

Login view prices

Description

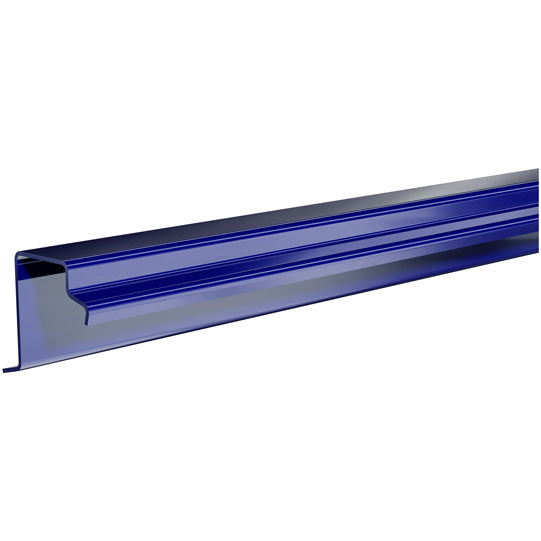

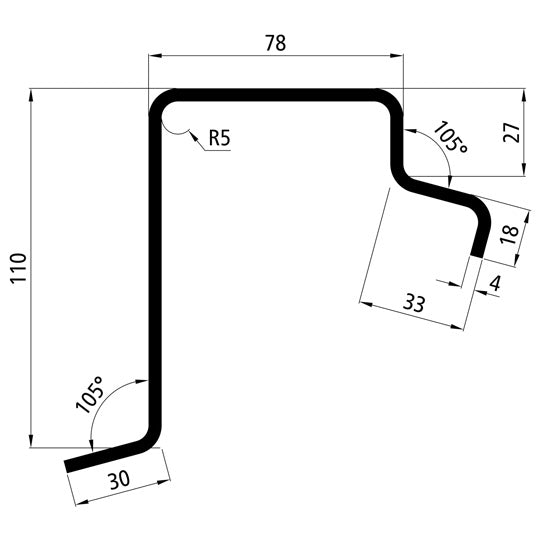

Tipper floor frame profile, QSTE380TM, raw, cold-profiled, length 6300 mm, 110 x 30 x 4 mm

Notes

In conjunction with the H 956 side board hinge and the H 955 S central locking system, this floor frame profile is an ideal combination for tipper bodies with 40 mm aluminum side boards.

Attributes

Grade QStE380TM
Length 6300.0
Lowering 30.0
Material Steel
Material thickness 4.0
Profile height 110.0
Profile type Tipper profiles
Surface Raw
