DA mudguard D 2220, galvanised, 220 × 2040 × 390 × 375 × 1550 m
DA mudguard D 2220, galvanised, 220 × 2040 × 390 × 375 × 1550 m
110352042
Description
Description
Double-axle mudguard D 2220, sendzimir galvanised sheet steel, 220 × 2040 × 390 × 375 × 1550 mm (w × l × h × r × s)
Notes
Notes

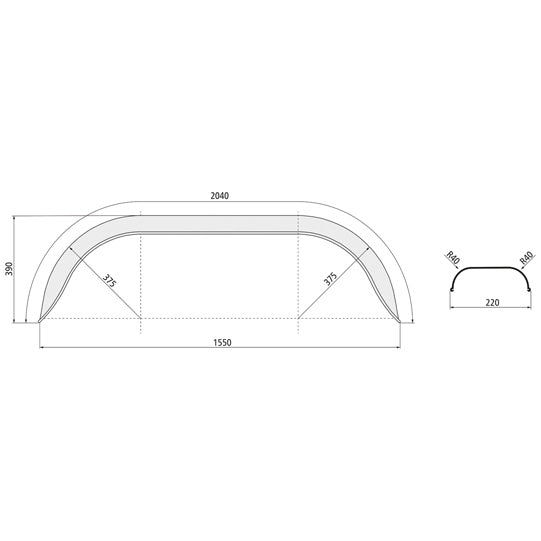

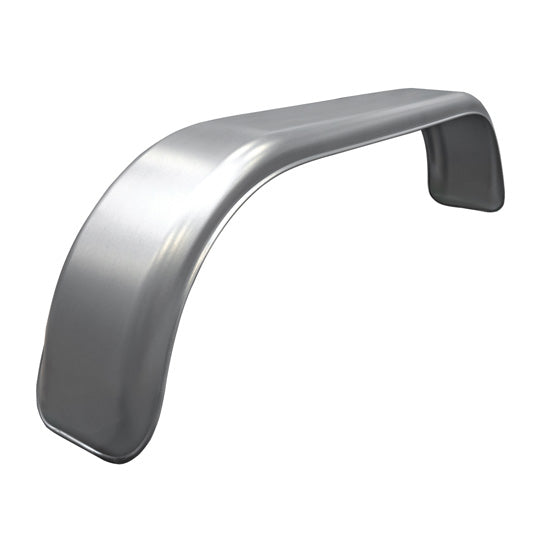

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.
Attributes
Attributes
Clamping dimension | 1550.0 |
Height | 390.0 |
Length | 2040.0 |
Material | Sheet metal |
Material thickness | 1.0 |
Mounting hole pattern | without |
Mudguard console | No |
Radius | 375.0 |
Splash guard | No |
Surface | Sendzimir galvanizing |
Width | 220.0 |
