Tilting bearing 2001 Ball Ø 60 mm Socket pin bore 19/19 mm

Tilting bearing 2001 Ball Ø 60 mm Socket pin bore 19/19 mm

109141257

Login view prices

Description

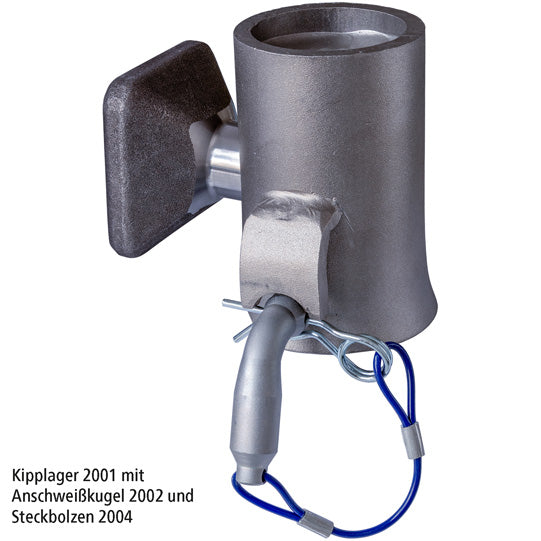

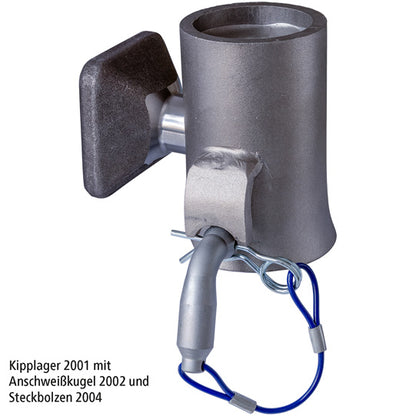

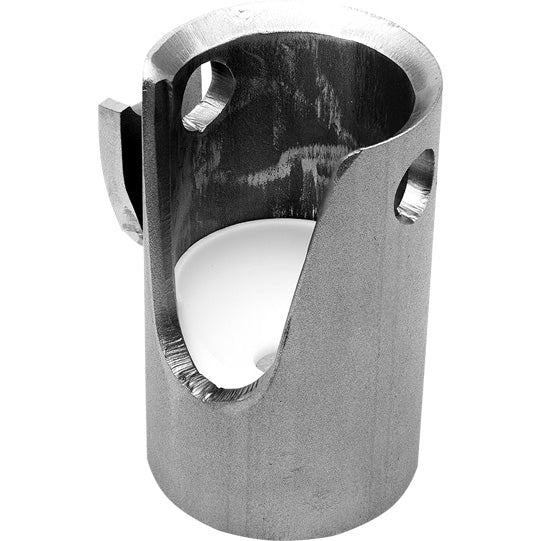

Tilting bearing 2001, for ball Ø60 mm, raw steel, pin bore 19/19 mm, without noise damping, with Durethan shell, tilting angle up to max. 50°

Notes

The 2001 ball tipper bearing is a cost-effective solution, particularly for agricultural vehicles and light tippers. The simple and quick assembly makes it particularly economical, rational in design, as the tilt support shaft is not required, and maintenance-free thanks to the replaceable Durethan shell. The tilting ball bearing 2000 is optionally available with built-in noise damping and/or crossover protection. The ball tilting bearing 2000 (Ø 60 mm) is designed for vehicles up to 12 t GM. Tilt angle up to a maximum of 50°.

Attributes

Perm punkt total vehicle weight 12.0
Surface Raw
