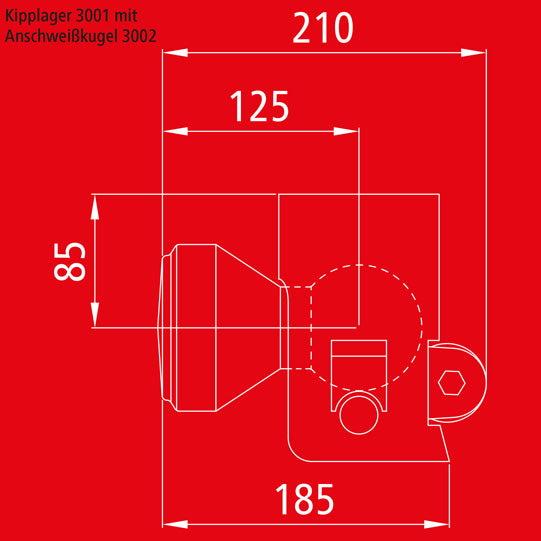

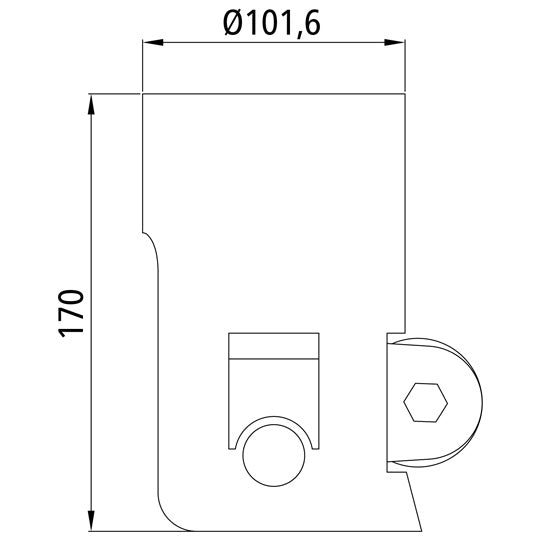

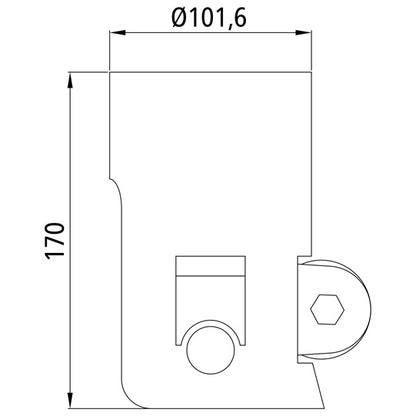

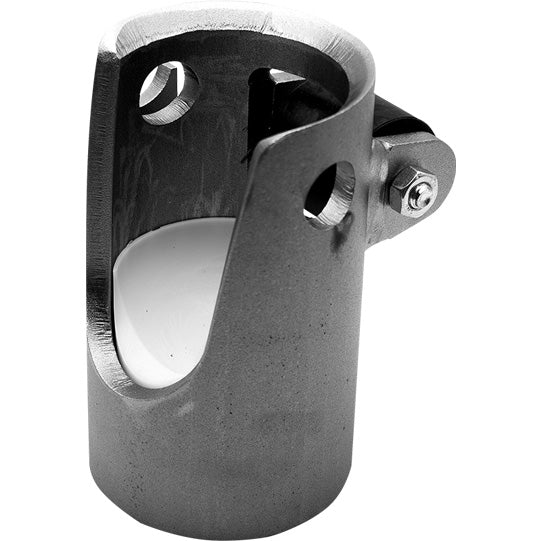

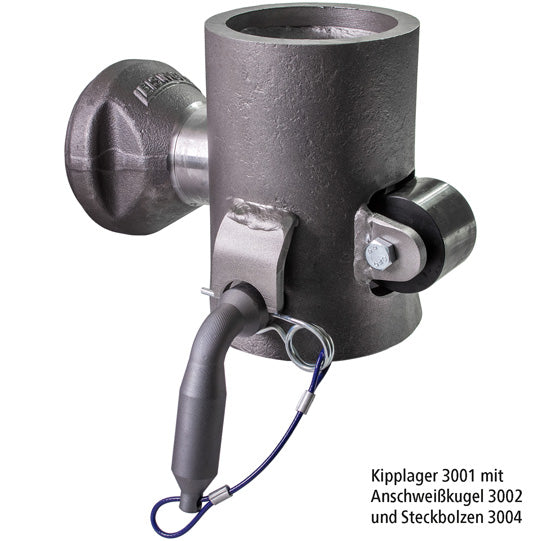

Tilting bearing 3001, ball Ø 80 mm, pin bore 24/24 mm

Tilting bearing 3001, ball Ø 80 mm, pin bore 24/24 mm

109141267

Login view prices

Description

Tilting bearing 3001, for ball Ø 80 mm, raw steel, pin bore 24/24 mm, with noise damping, with Durethan shell, tilting angle up to max. 50°

Notes

The ball tilting bearing 3001 has built-in noise damping, which is achieved by a robust Vulkollan roller. This roller can be adjusted eccentrically. The tipper bearing is maintenance-free thanks to a screwed-in Durethan shell, which guarantees a long service life.
The ball tipper bearing can be used for all tipper bodies on trucks, trailers and semi-trailers. The ball tilting bearing 3001 (Ø 80 mm) is designed for vehicles up to 24 t GM. Tipping angle up to a maximum of 50°.

Attributes

Perm punkt total vehicle weight 24.0
Surface Raw
