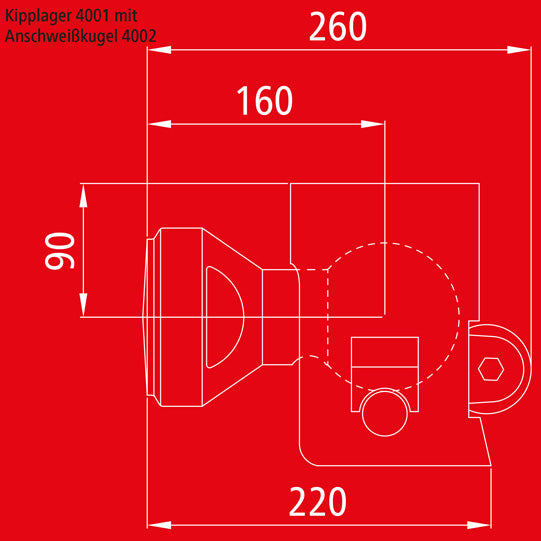

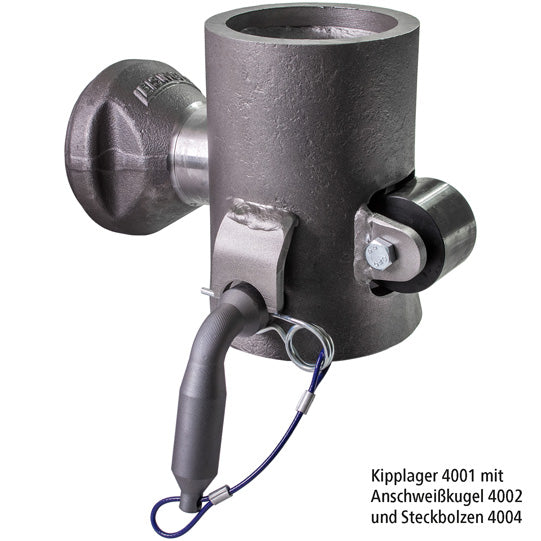

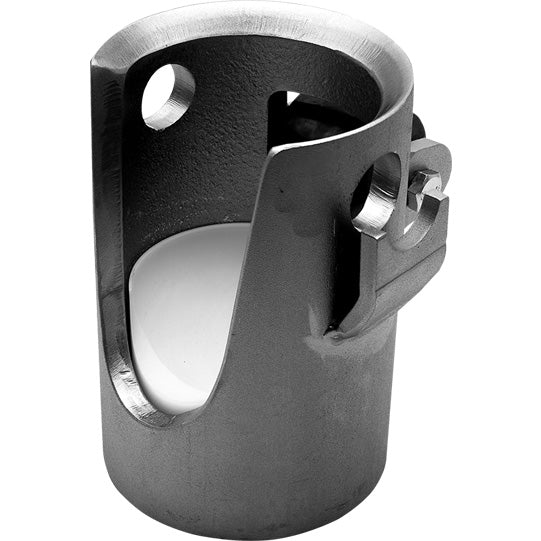

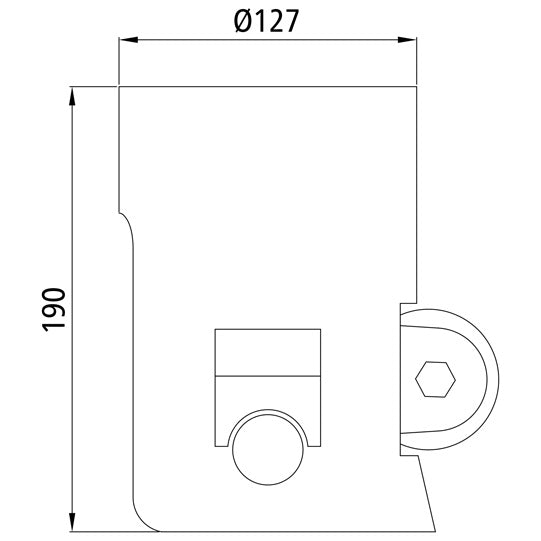

Tilting bearing 4001 Ball Ø 100 mm, pin bore 32/28 mm

Tilting bearing 4001 Ball Ø 100 mm, pin bore 32/28 mm

109141277

Login view prices

Description

Tilting bearing 4001, for ball Ø 100 mm, raw steel, pin bore 32/28 mm, with noise damping, with Durethan shell, tilting angle up to max. 50°

Notes

The ball tilting bearing 4001 has built-in noise damping, which is achieved by a robust Vulkollan roller. This roller can be adjusted eccentrically. The tilting bearing is maintenance-free thanks to a screwed-in Durethan shell, which guarantees a long service life.
The ball tipper bearing can be used for all tipper bodies on trucks, trailers and semi-trailers. The ball tilting bearing 4001 (Ø 100 mm) is designed for vehicles up to 36 t GM. Tipping angle up to a maximum of 50°.

Attributes

Perm punkt total vehicle weight 40.0
Surface Raw
