Locking bar 4042, Al/el, 1910-2360mm, BC400daN, K.19/24S
Locking bar 4042, Al/el, 1910-2360mm, BC400daN, K.19/24S
142138505
Description
Description

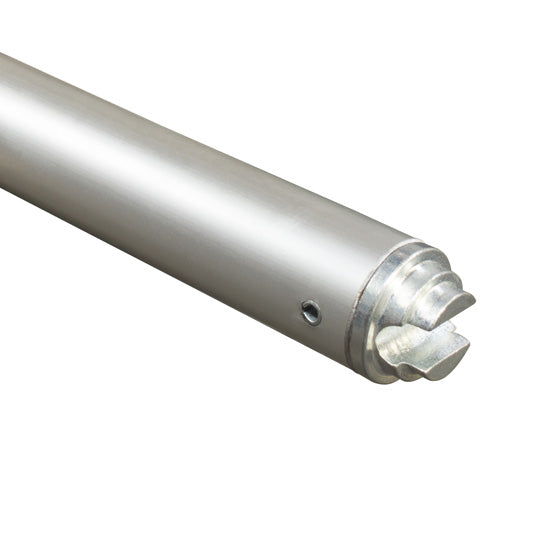

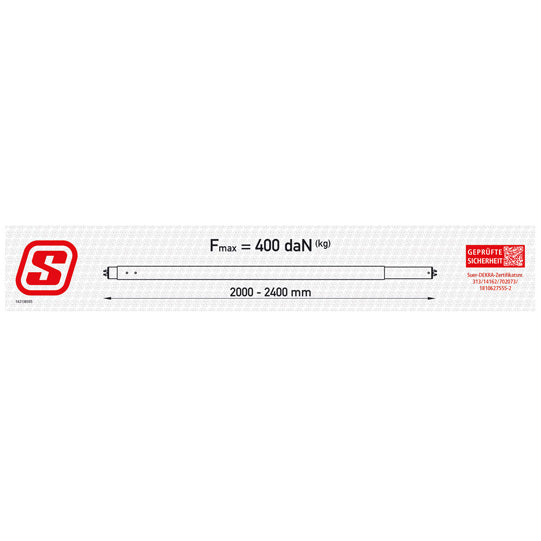

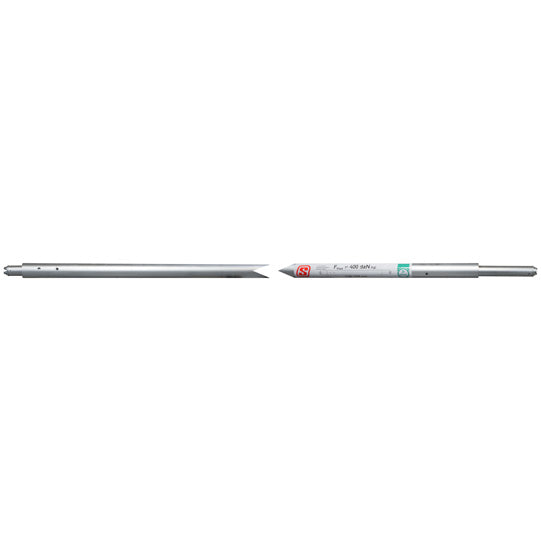

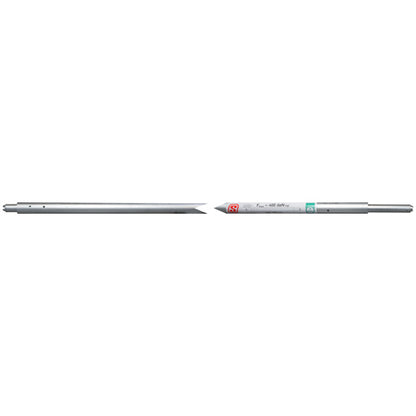

S-Line locking bar 4042 Al/el, BC 400 daN, aluminum elo×ed, application range 1910 - 2360 mm, adjustable in 1x 50 mm and 4x 100 mm increments, can be shortened to 675 mm application range, spring travel 100 mm, recommended spring preload 40 mm, preset application range 1910 - 2360 mm, combination spigot Ø 19/24 mm with slot 9 mm - rigid side 142138730, spring side 142138730, labelled, DEKRA-certified
Attributes
Attributes
Adjustable | Yes |
Adjustment range | 2000 - 2400 |
End fitting | 19/24 mm combination spigot with slot |
Locking force | 400.0 |
Material | Aluminum |
Rubber coating | No |
Tube diameter | 42 |
Tube shape | round |
Product safety
Product safety
Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
