Takalokasuoja H-PE 40.1280.20-IKK AS 250 SG. polypropeeni

Takalokasuoja H-PE 40.1280.20-IKK AS 250 SG. polypropeeni

181378023

Drawing no: 1017 40 2025 SG

Sauermann

⚖️ 6,8 kg

Price on request

Kuvaus

Takalokasuoja H-PE 40.1280.20-IKK AS 250 SG, softflow-roiskesuojajärjestelmällä, PP-EPDM (modifioitu polypropeeni), musta, ruiskuvalettu, integroitu lokasuojan kiinnike, portaattomasti säädettävä, sis. kiinnityspuristimia putkelle Ø 40–42 mm, 400 × 640 × 2010 × 1280 × 640 mm (l × p × p × k), roiskesuoja 400 × 250 mm (l × k)

Muistiinpanoja

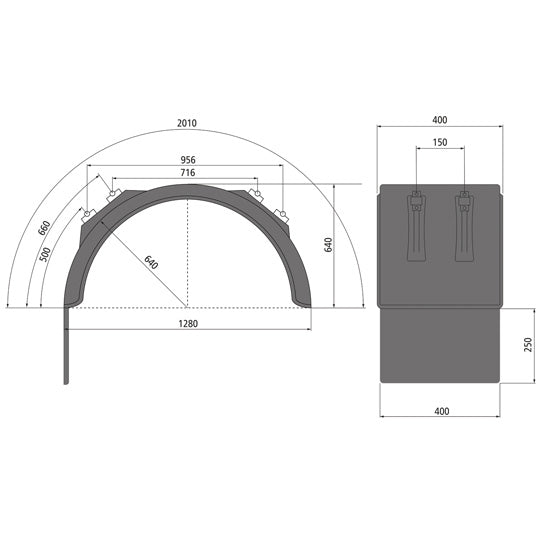

The article shown in the photo corresponds to the type and shape of the mudguard. The exact dimensions are shown in the drawing.

Ominaisuudet

Clamping dimension 1280.0
Console adjustment range 160.0
Height 640.0
Length 2010.0
Length splash guard 250.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropeeni)
Mounting hole pattern without
Mudguard console Yes
Radius 640.0
Splash guard Yes
Width 400.0

Tuoteturvallisuus

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
