Takalokasuoja H-PE 45.1280.20-IKK AS 350 SG. polypropeenia

Takalokasuoja H-PE 45.1280.20-IKK AS 350 SG. polypropeenia

181378029

Drawing no: 1017 45 2035 SG

Sauermann

⚖️ 7,3 kg

Price on request

Kuvaus

Takalokasuoja H-PE 45.1280.20-IKK AS 350 SG, softflow-roiskesuojajärjestelmällä, PP-EPDM (modifioitu polypropeeni), musta, ruiskuvalettu, integroitu lokasuojan kiinnike, portaattomasti säädettävä, sis. kiinnityspuristimia putkelle Ø 40–42 mm, 450 × 640 × 2010 × 1280 × 640 mm (l × p × p × k), roiskesuoja 400 × 350 mm (l × k)

Muistiinpanoja

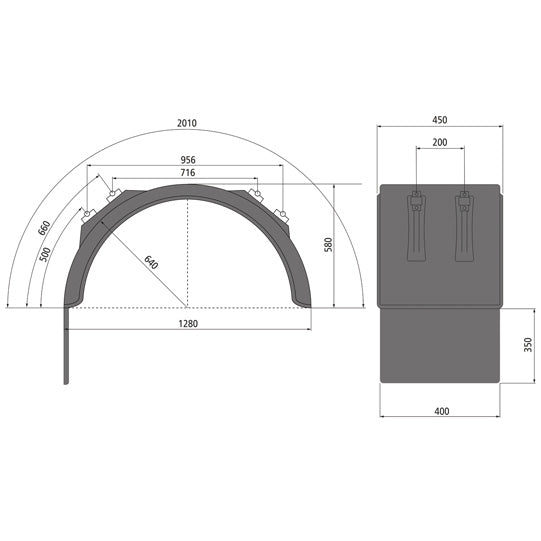

The article shown in the photo corresponds to the type and shape of the mudguard. The exact dimensions are shown in the drawing.

Ominaisuudet

Clamping dimension 1280.0
Console adjustment range 160.0
Height 640.0
Length 2010.0
Length splash guard 350.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropeeni)
Mounting hole pattern without
Mudguard console Yes
Radius 640.0
Splash guard Yes
Width 450.0
