Tilting bearing 2001 ball Ø 60mm, pin width 20/18mm, low-noise

Tilting bearing 2001 ball Ø 60mm, pin width 20/18mm, low-noise

109141260

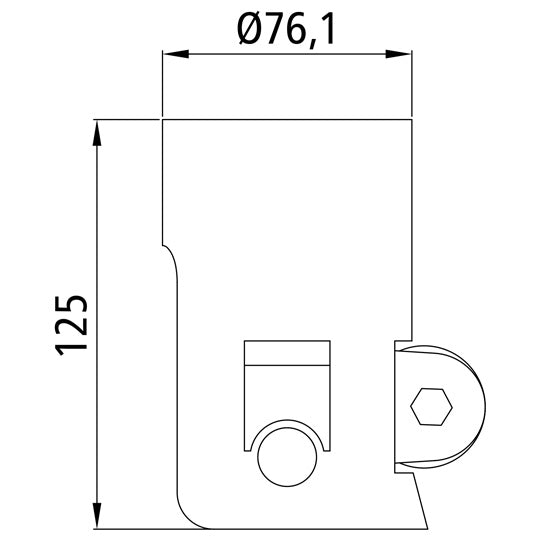

Drawing no: 10017

⚖️ 1,803 kg

€102,00
€102,00
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

Tilting bearing 2001, for ball Ø 60 mm, raw steel, pin bore 20/18 mm, with noise damping, with Durethan shell, tilting angle up to max. 50°.

Notes

The 2001 tipper ball joints are a cost-effective solution for agricultural vehicles and light tippers in particular. The simple and quick assembly makes it particularly economical, rational in design, as the tipper carrier shaft is not required, and maintenance-free thanks to the replaceable Durethan shell.The tipper ball joint 2000 is optionally available with built-in noise damping and/or crossover protection.The tipper ball joint 2000 (Ø 60 mm) is designed for vehicles up to 12 t GM.Tipping angle up to a maximum of 50°.

Attributes

Perm punkt total vehicle weight 12.0
Surface Roh
