Tilt bearing 1001, L, raw, ball head Ø 45 mm, w/ Durethansch.

Tilt bearing 1001, L, raw, ball head Ø 45 mm, w/ Durethansch.

109141335

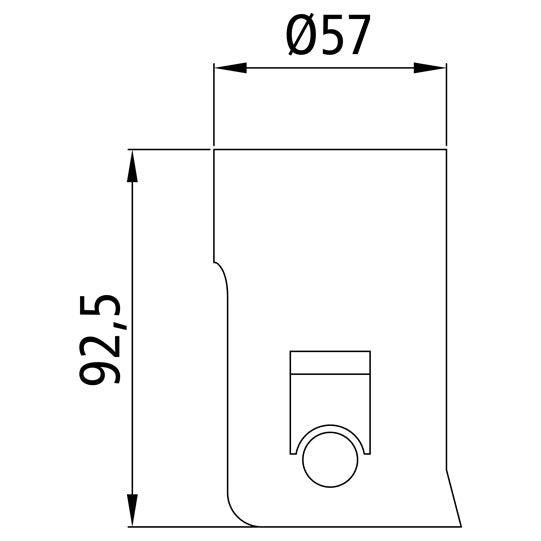

Drawing no: 10508

⚖️ 0,71 kg

€32,40
€32,40
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

Tilt bearing 1001, left, untreated steel, drill holes for socket pin 16/16, for Ø 45 mm ball, with Durethan shell, tilt angle up to max. 50°

Notes

The 1001 tipper ball joints are a cost-effective solution for agricultural vehicles and light tippers in particular. Thanks to its simple and quick assembly, it is particularly economical, rational in design, as there is no need for a tipper beam shaft, and maintenance-free due to the replaceable Durethan shell.The tipper ball joints 1000 (Ø 45 mm) are designed for vehicles up to 8 t GM.Tipping angle up to a maximum of 50°.

Attributes

Material Stahl
Perm punkt total vehicle weight 8.0
Surface Roh
