Clamping rod 1342 pcs, Al/el, 2100-2470mm, BC130/200daN, Gu.Fu

Clamping rod 1342 pcs, Al/el, 2100-2470mm, BC130/200daN, Gu.Fu

142138296

⚖️ 4,15 kg

€40,40
€40,40
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

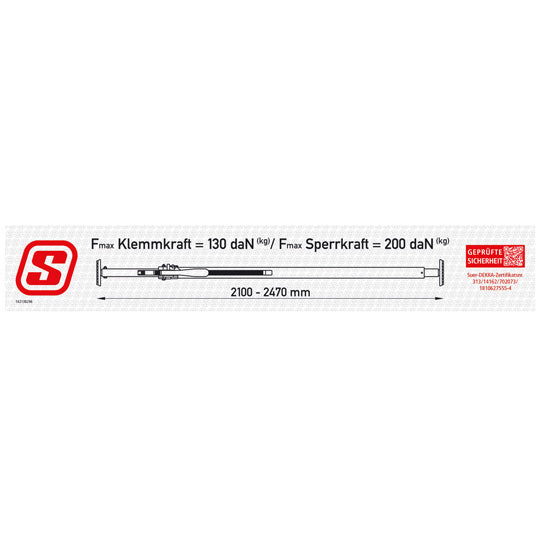

S-Line clamping rod 1342 stepless, Al/el, BC 130 daN with rubber base / 200 daN with spigot, aluminum anodised, application range 2100-2470mm, rubber base 103x65-Ø24mm - Rigid side: 142138091, spring side: 142138091, labelled, DEKRA-certified, optional spigot spring side: KØ19/24S - 142138732, Ø19 - 142138764, Ø24/33 - 142138772, Ø24 - 142138768, Ø19/24/32 - 142138850, optional spigot rigid side: KØ19/24S - 142138732, Ø19 - 142138764, Ø24/33 - 142138772, Ø24 - 142138768, Ø19/24/32 -142138850

Notes

The clamping Bars can be retrofitted telescopically, with a support tube or on both sides with a combination spigot Ø 19/24 mm with slot, spigot 19 mm, spigot 24 mm or spigot 24/33 mm as a custom-made product. Prices, minimum order quantities and delivery times on request.

Attributes

Adjustable Yes
Adjustment range 370
Application area 2100 - 2470
Clamping force 130.0
End fitting Square rubber foot
Locking force 200.0
Material Aluminium
Rubber coating No
Surface Eloxiert
Tube diameter 42
Tube shape round
