Airline profile anchor rail 4010-AL, aluminum anodised, 4170 mm

Airline profile anchor rail 4010-AL, aluminum anodised, 4170 mm

142138898

⚖️ 7,7 kg

€124,90
€124,90
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

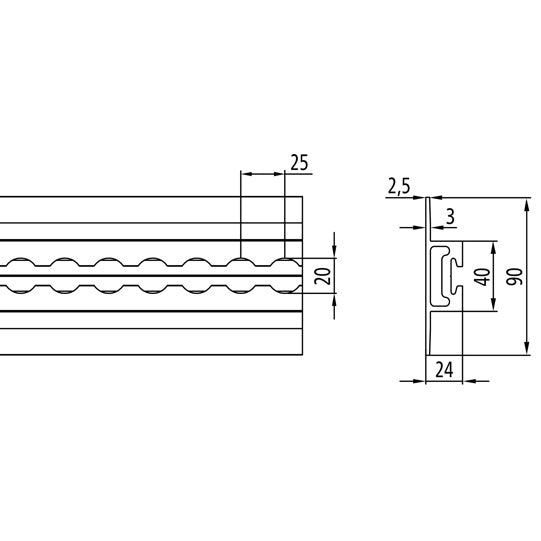

S-Line® Airline profile anchor channel 4010-AL,aluminum anodised, length 4170 mm, hole Ø 20 mm, 25 mm spacing, bottom wing design, 24 mm high, no countersunk hole, BLC ∡90° and ∡45° 1000 daN with end fitting 571, for floor mounting, compatible with combination spigot Ø 19/24 mm and all Airline end fittings

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Height 23.0
Hole diameter 20.0
Installation area Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 4170.0
Material Aluminium
Profile with airline system 0
Side wall lifting aid 0
Surface Eloxiert
