Mudguard short (quarter) L-PE 55.740.08-IKK AS 217

Mudguard short (quarter) L-PE 55.740.08-IKK AS 217

181376034

Drawing no: 1027 55 08217 RO

Sauermann

⚖️ 3,8 kg

Price on request

Description

Mudguard short (quarter) L-PE 55.740.08-IKK AS 217, with lamella splash guard system, polyethylene, black, integrated mudguard bracket infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 550 × 500 × 810 × 500 mm (w × r × l × s), splash guard 500 × 217 mm (w × l)

Notes

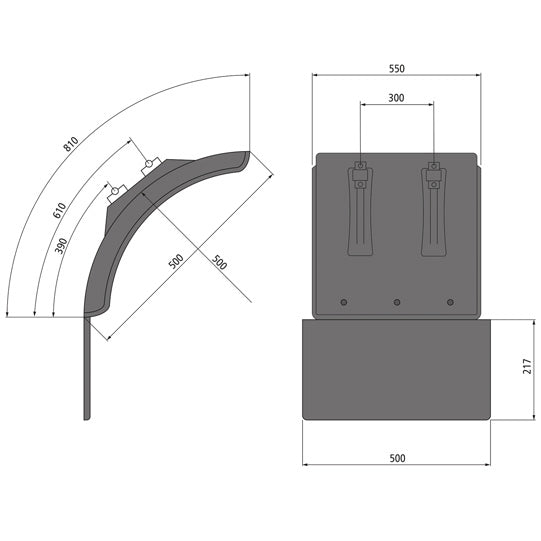

The article shown in the photo corresponds to the type and shape of the mudguard. The exact dimensions are shown in the drawing.

Attributes

Clamping dimension 500.0
Console adjustment range 220.0
Length 810.0
Length splash guard 217.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 500.0
Splash guard Yes
Width 550.0
