Rear mudguard H-PE 45.1280.20-IKK AS 300 SG, polypropylene

Rear mudguard H-PE 45.1280.20-IKK AS 300 SG, polypropylene

181378028

Drawing no: 1017 45 2030 SG

Sauermann

⚖️ 7,2 kg

€72,10
€72,10
Orderable

Description

Rear mudguard H-PE 45.1280.20-IKK AS 300 SG, with softflow splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 450 × 640 × 2010 × 1280 × 640 mm (w × r × l × s × h), splash guard 400 × 300 mm (w × h)

Notes

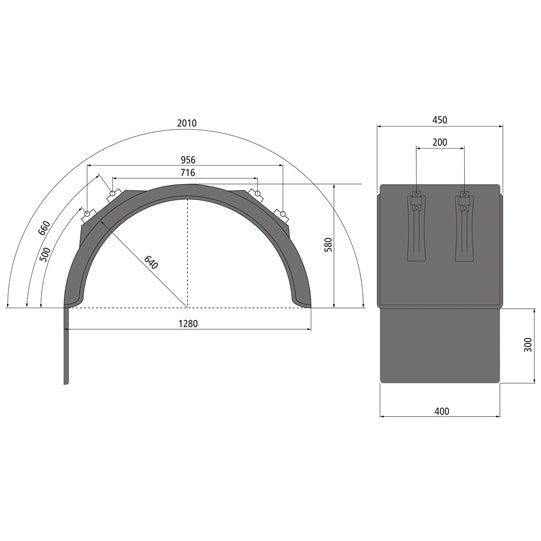

The article shown in the photo corresponds to the type and shape of the mudguard. The exact dimensions are shown in the drawing.

Attributes

Clamping dimension 1280.0
Console adjustment range 160.0
Height 640.0
Length 2010.0
Length splash guard 300.0
Load tube diameter 40 - 42
Material PP-EPDM (Polypropylen)
Mounting hole pattern without
Mudguard console Yes
Radius 640.0
Splash guard Yes
Width 450.0
