Mudguard short L-PE 40.670.07-IKK SG, PP-EPDM

Mudguard short L-PE 40.670.07-IKK SG, PP-EPDM

181378051

Drawing no: 1021 40 070 SG

Sauermann 1021 40 070

⚖️ 1,91 kg

€16,80
€16,80
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

Mudguard short (quarter) L-PE 40.670.07-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 400 × 670 × 700 × 670 mm (w × r × l × s)

Notes

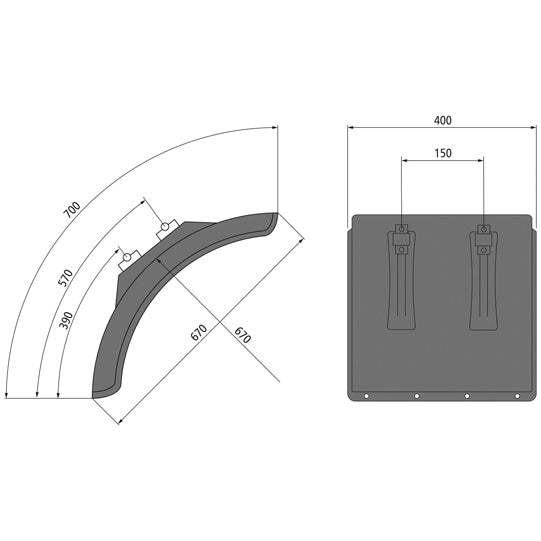

The article shown in the photo corresponds to the type and shape of the mudguard. The exact dimensions are shown in the drawing.

Attributes

Clamping dimension 670.0
Console adjustment range 180.0
Length 700.0
Load tube diameter 40 - 42
Material PP-EPDM (Polypropylen)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard No
Width 400.0
