Mudguard quarter L-PE 65.670.07-IKK AS 310 SG, polypropylene

Mudguard quarter L-PE 65.670.07-IKK AS 310 SG, polypropylene

181378071

Drawing no: 1027 65 07310 SG

⚖️ 3,9 kg

€60,40
€60,40
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

Mudguard short (quarter) L-PE 65.670.07-IKK AS 310 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 650 × 670 × 700 × 670 mm (w × r × l × s), splash guard690 × 310 mm (w × l)

Notes

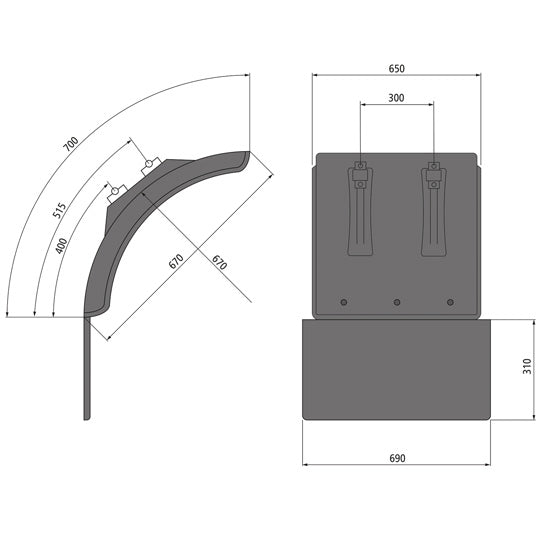

The item shown in the photo equates to the type and shape of the mudguards. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 670.0
Console adjustment range 115.0
Length 700.0
Length splash guard 310.0
Load tube diameter 40 - 42
Material PP-EPDM (Polypropylen)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard Yes
Width 650.0
