Mudguard short L-PE 65.670.07-IKK SG, polypropylene

Mudguard short L-PE 65.670.07-IKK SG, polypropylene

181378115

Drawing no: 1021 65 070 SG

Sauermann

⚖️ 2,6 kg

€24,10
€24,10
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

Mudguard short (quarter) L-PE 65.670.07-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 650 × 670 × 700 × 670 mm (w × r × l × s)

Notes

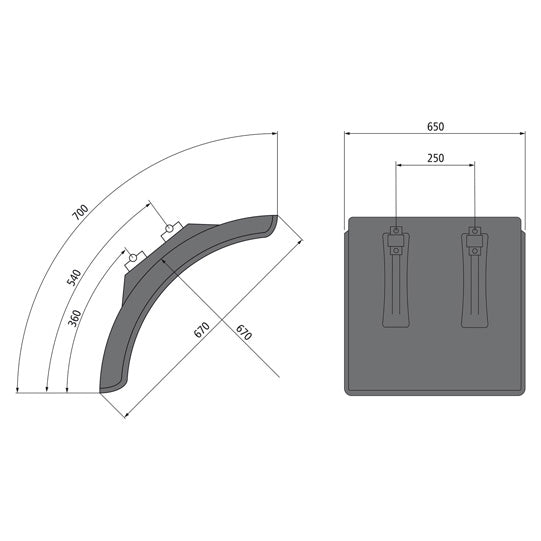

The item shown in the photo equates to the type and shape of the mudguards. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 670.0
Console adjustment range 180.0
Length 700.0
Load tube diameter 40 - 42
Material PP-EPDM (Polypropylen)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard No
Width 650.0
