Mudguard short L-PE 67.615.06-IKK SG, polypropylene

Mudguard short L-PE 67.615.06-IKK SG, polypropylene

181378116

Drawing no: 1021 67 060 SG

Sauermann

⚖️ 2,4 kg

€23,00
€23,00
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

Mudguard short (quarter) L-PE 67.615.06-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 670 × 640 × 640 × 640 × 615 mm (w × r × l × s)

Notes

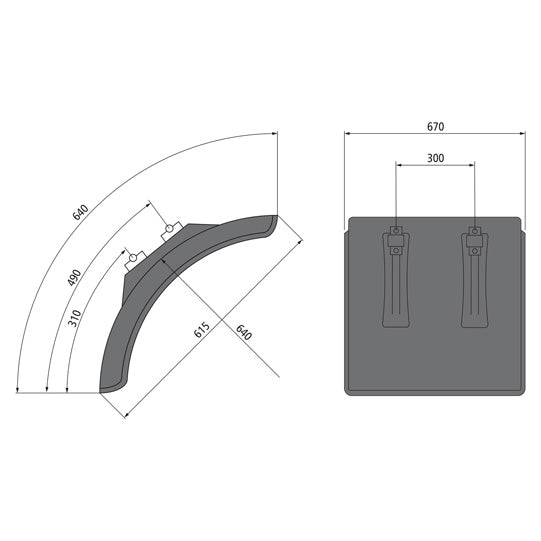

The item shown in the photo equates to the type and shape of the mudguards. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 615.0
Console adjustment range 180.0
Length 640.0
Load tube diameter 40 - 42
Material PP-EPDM (Polypropylen)
Mounting hole pattern without
Mudguard console Yes
Radius 640.0
Splash guard No
Width 670.0
