Platf.m floor frame profile, S355MC, untreated, 7300 mm, 110x18

Platf.m floor frame profile, S355MC, untreated, 7300 mm, 110x18

372561440

Drawing no: 00304050b

⚖️ 35,99 kg

€207,50
€207,50
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

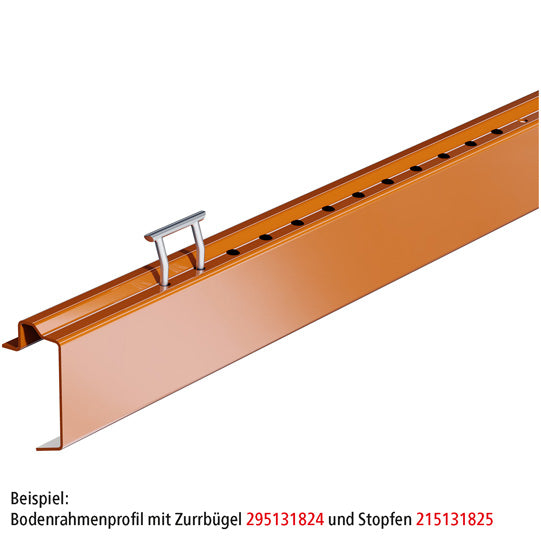

Platform floor frame profile, S355MC, untreated, cold-profiled, length 7300 mm, 110 x 18 x 2.5 mm, with hole pattern for lashing bracket 295132021

Notes

The floor frame profile is prepared for lashing straps 295132021, with corresponding mounting holes at 75 mm intervals. The inserted lashing straps do not protrude above the floor frame profile. No accumulation of water and dirt in the lashing straps area, therefore no freezing of the lashing straps under ice. Splash water protection for open lashing straps mounting holes using a plug 215131825 (Ø 16 mm).

Attributes

Grade S355MC
Length 7300.0
Lowering 18.0
Material Stahl
Material thickness 3.0
Profile height 110.0
Profile type Bodenrahmenprofil für Zurrbügel
Profile width 96.0
Surface Roh
