Aluminium connecting element f. upper hinge part, bR pressed

Aluminium connecting element f. upper hinge part, bR pressed

535612910

⚖️ 0,519 kg /m

€98,60
€98,60
In stock
Ships from Handelsstraße 5 in 7-10 business days

Description

aluminum Connecting element for upper hinge part 621294, mill finish, 7600 mm layer length

Notes

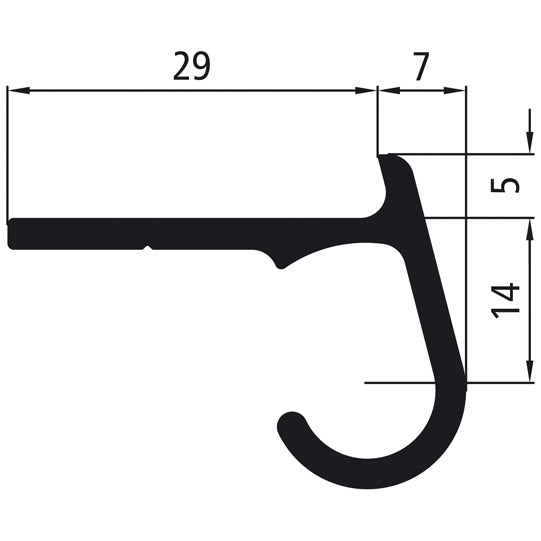

Illustration: The left-hand side of the profile is on the inside. 612910 and 621294 together form an upper end profile with linkage, which can be used for adjusting butterfly flaps, for example. The result is a smooth outer area that can be used optimally as an advertising space. The snug fit or positive-fit connection of the upper end profiles to the connecting element eliminates the need for additional sealing of the flap in this area. Maximum angle of beam 94°. Stock length:7600 mm

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0,5 F25)
Flat eyelet profile 0
Lashing rail profile 0
Length 7600.0
Material Aluminium
Profile position Top half
Profile type Bordwandprofil
Profile with airline system 0
Side wall lifting aid 0
Surface pressblank
System Snaplockprofil
