Fr. spring shoe BH130mm, f. Springbr.100 mm, bush Ø 24mm

Fr. spring shoe BH130mm, f. Springbr.100 mm, bush Ø 24mm

260181100

⚖️ 6,5 kg

Login view prices

Description

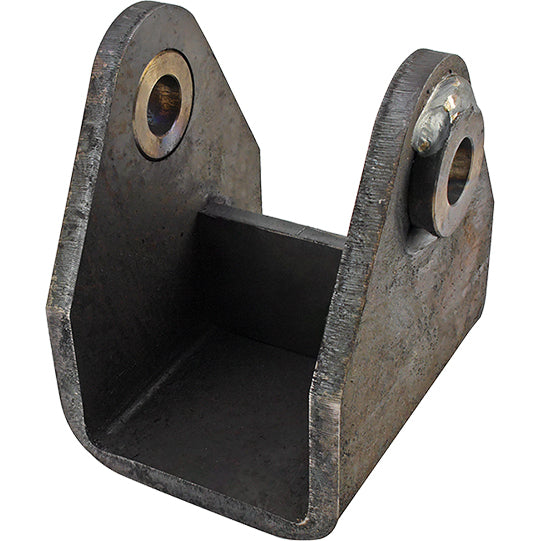

Front spring shoe height 130 mm, for spring width 100 mm, spring bush Ø 24 mm, raw steel, for parabolic springs, spring bushes without groove, with bushes for standard spring bolts

Notes

For single or consecutively arranged axles with 6-11 t single axle load.

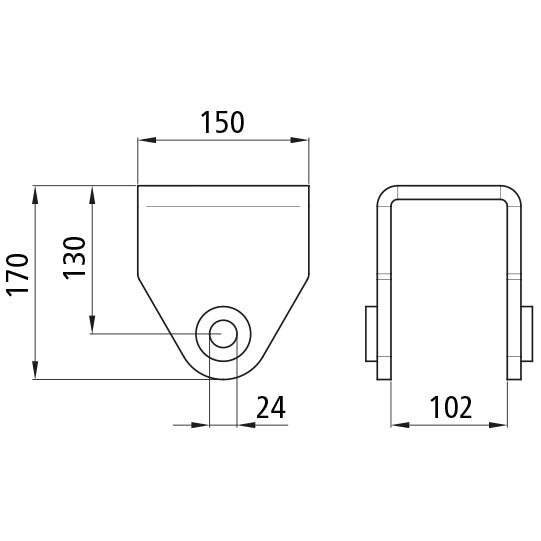

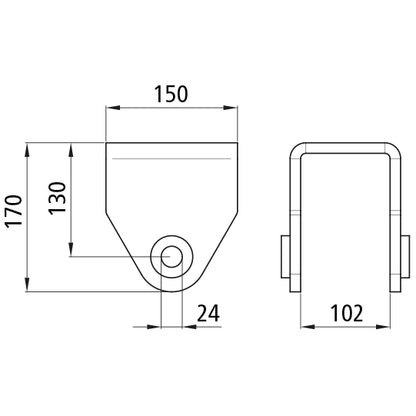

Attributes

Design Front
For spring width 100.0
Height 170.0
Length 150.0
Material Steel
Spring bushing diameter 24 mm
Spring mounting height 130.0
Surface Raw
