Mudguard H 1508, galvanized, 150 × 815 × 265 × 250 × 500 mm

Mudguard H 1508, galvanized, 150 × 815 × 265 × 250 × 500 mm

110352021

⚖️ 1,4 kg

Login view prices

Description

Mudguard H 1508, sendzimir galvanized sheet steel, 150 × 815 × 265 × 250 × 500 mm (w × l × h × r × s)

Notes

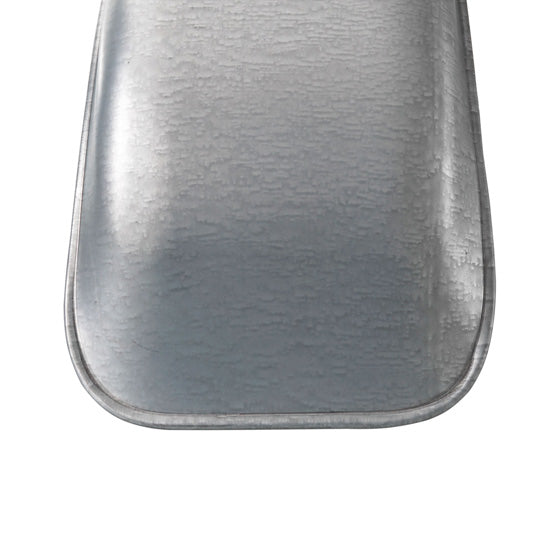

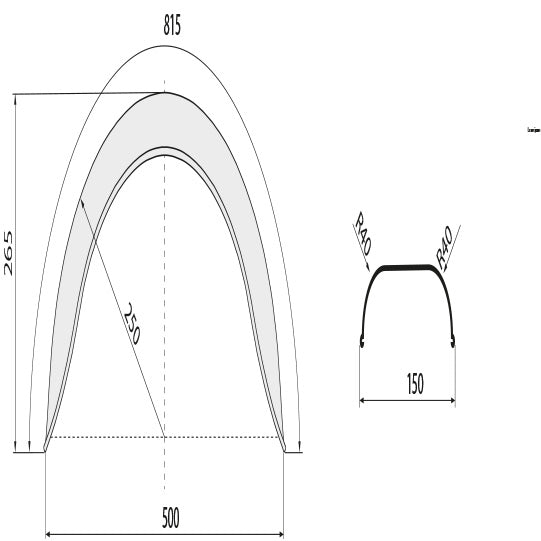

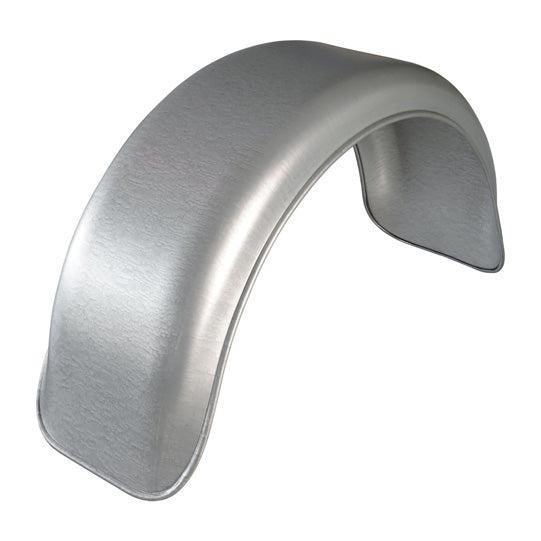

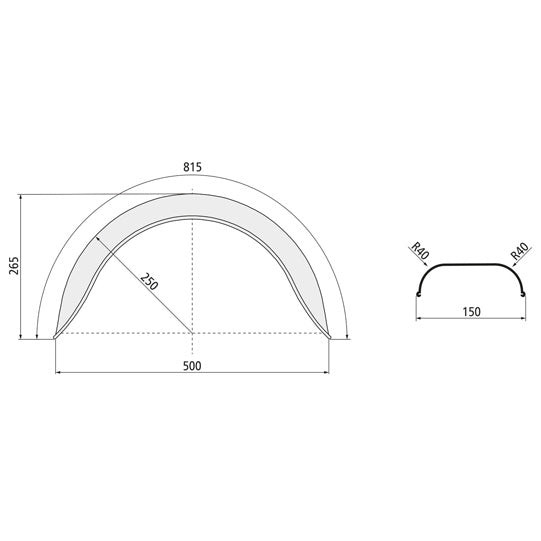

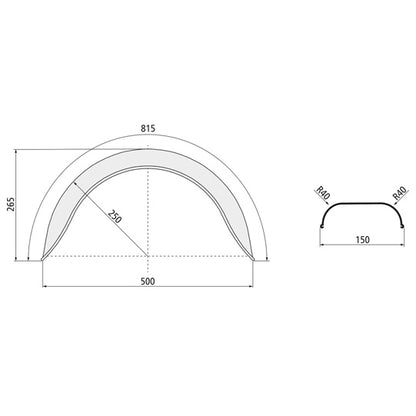

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 500.0
Height 265.0
Length 815.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern without
Mudguard console No
Radius 250.0
Splash guard No
Surface Sendzimir galvanizing
Width 150.0
