Mudguard H 2717, galvanized, 270 × 1660 × 545 × 500 × 1000 mm

Mudguard H 2717, galvanized, 270 × 1660 × 545 × 500 × 1000 mm

110352039

⚖️ 4,8 kg

Login view prices

Description

Mudguard H 2717, sendzimir galvanized sheet steel, 270 × 1660 × 545 × 500 × 1000 mm (w × l × h × r × s)

Notes

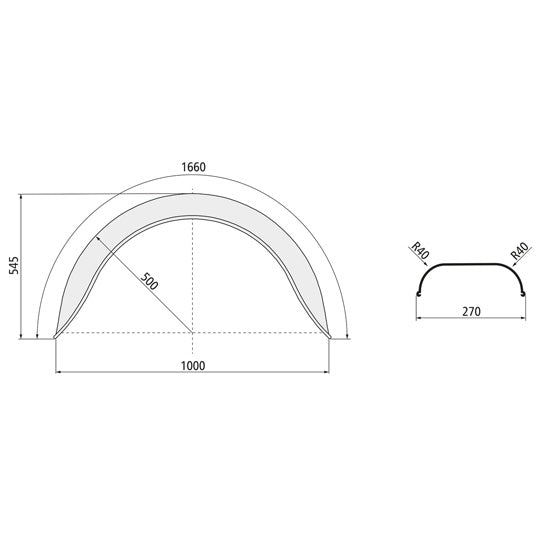

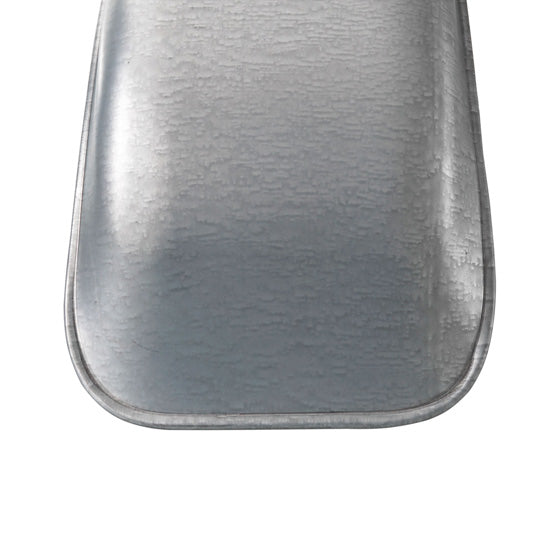

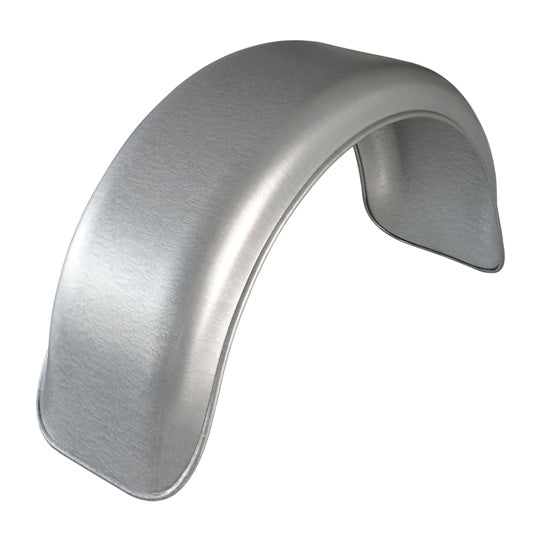

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1000.0
Height 545.0
Length 1660.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern without
Mudguard console No
Radius 500.0
Splash guard No
Surface Sendzimir galvanizing
Width 270.0
