Parabolic spring unit GK 120/80L P-W

Parabolic spring unit GK 120/80L P-W

116251498

⚖️ 133,0 kg

Login view prices

Description

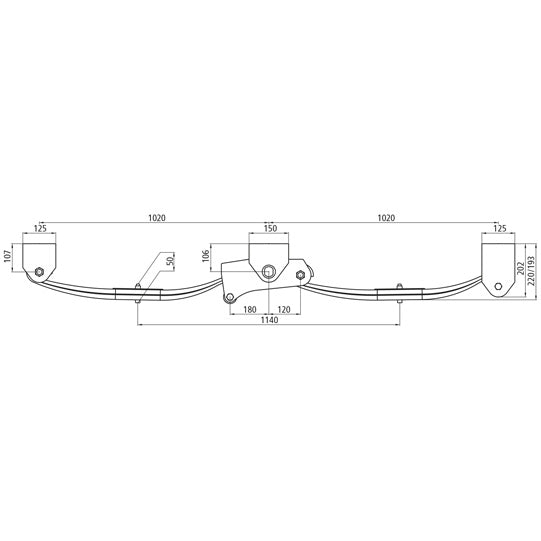

PARABEL SPRING AGGREGATE GK 120/80/L P-W, with parabolic springs, permissible axle load 6000 kg, total load capacity 12000 kg, axle spacing dimension d 1140 mm, installation height in unloaded condition dimension a (±5) 220 mm, installation height in fully loaded condition dimension b (±5) 193 mm, spring width 80 mm, dimension c 1020 mm, package thickness spring center dimension h 50 mm, dimension e 180 mm, dimension f 120 mm

Attributes

Full load spring 12000.0
Package thickness 50.0
Perm punkt axle load 6000.0
Spring width 80.0
