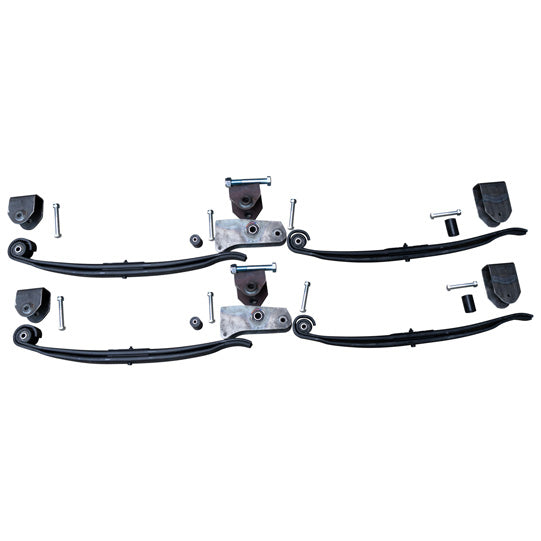

Parabolic spring unit GK 160/80/1270 P-W

Parabolic spring unit GK 160/80/1270 P-W

116251502

⚖️ 146,0 kg

Login view prices

Description

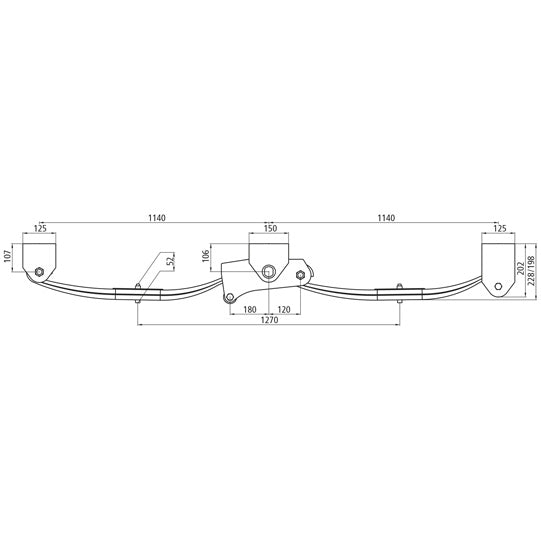

Parabolic spring unit GK 160/80/1270 P-W, with parabolic springs, permissible axle load 8000 kg, total load capacity 16000 kg, axle spacing dimension d 1260 mm, installation height in unloaded condition dimension a (±5) 228 mm, installation height in fully loaded condition dimension b (±5) 198 mm, spring width 80 mm, dimension c 1140 mm, package thickness spring center dimension h 58 mm, dimension e 180 mm, dimension f 120 mm

Attributes

Full load spring 16000.0
Package thickness 52.0
Perm punkt axle load 8000.0
Spring width 80.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
